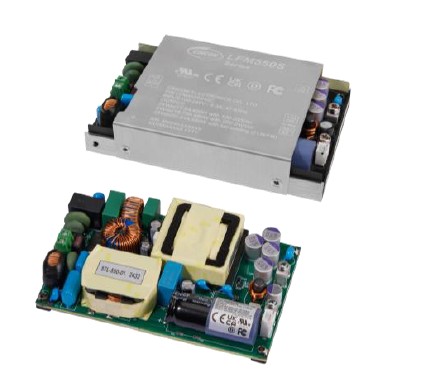

lfm550s power supply lfm550s power supply

LFM550S Series

LFM550S Series, 550 Watt, Single Output Power Supply – Ultra Compact Size

Conduction Cooled

Request a quote Download Datasheet

Features

  • Universal Input Range 85 ~ 264 VAC
  • High Efficiency up to 94.5%
  • 25.4mm Low Profile Package
  • No Load Input Power Consumption<0.5W
  • No Load Input Power Consumption<0.6W for 54V
  • Approval IEC/EN/UL 62368-1 Ed 3.0
  • Approval EN55032 and CISPR/FCC Class B
  • Meets IEC/EN 60335-1
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Over Temperature Protection
  • High Power Density 25W/Inches3
  • Active PFC Function
  • Over Voltage Category OVC II & OVC III Models
  • Constant Current

Models and Ratings

Model Input VAC Output VDC Output Current Size
LFM550S120C 85~264 VAC 12 Volts 45.83 Amps 129.4 x 83.5 x 25.4mm
LFM550S150C 85~264 VAC 15 Volts 36.66 Amps 129.4 x 83.5 x 25.4mm
LFM550S240C 85~264 VAC 24 Volts 22.91 Amps 129.4 x 83.5 x 25.4mm
LFM550S280C 85~264 VAC 28 Volts 19.64 Amps 129.4 x 83.5 x 25.4mm
LFM550S300C 85~264 VAC 30 Volts 18.33 Amps 129.4 x 83.5 x 25.4mm
LFM550S360C 85~264 VAC 36 Volts 15.27 Amps 129.4 x 83.5 x 25.4mm
LFM550S480C 85~264 VAC 48 Volts 11.45 Amps 129.4 x 83.5 x 25.4mm
LFM550S540C 85~264 VAC 54 Volts 10.18 Amps 129.4 x 83.5 x 25.4mm

Related Products

ARF500E-power-supply ARF500E-power-supply

ARF500E Series

Models & Information
GHA500F-power-supply GHA500F-power-supply

GHA500F Series

Models & Information

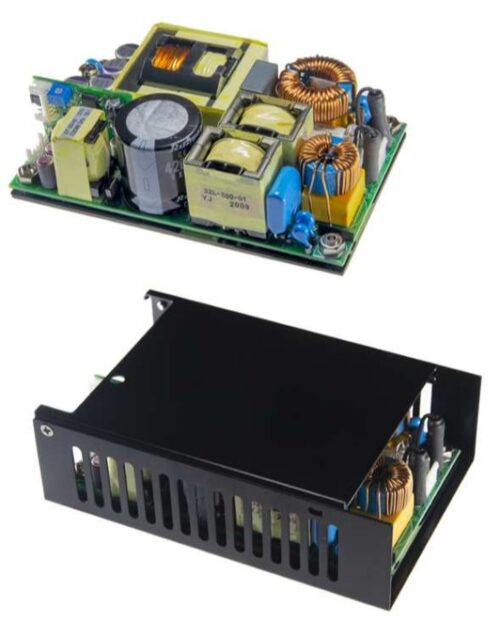

cfm500 SERIES cfm500 SERIES
