VL-1 Watt
Home | Products | Through Hole DC-DC Converters | VL-1 Watt
VL-1 Series, 1 Watt Through Hole DC-DC Converter
7 Pin SIL Package
6000 VDC High Isolation
Features
- 7 Pin SIL Package
- 6000 VDC High Isolation
- Physical Clearance of Isolation Barrier 2.5mm
- Low Ripple and Noise
- Efficiency up to 81%
- Operating Temperature:-40℃ TO +85℃
- Rated working voltage for 250Vrms and 400Vdc
- Dedicated for IGBT applications
- Low coupling capacity
Models and Ratings
| Model | Input VDC | Output VDC | Output Current | Size SS (7 Pin SIL) |
|---|---|---|---|---|
| VL-053R3SSH6 | 5 Volts | 3.3 Volts | 303.03mA | 19.5 x 12 x 9.8mm |
| VL-0505SSH6 | 5 Volts | 5 Volts | 200mA | 19.5 x 12 x 9.8mm |
| VL-0509SSH6 | 5 Volts | 9 Volts | 111.11mA | 19.5 x 12 x 9.8mm |
| VL-0512SSH6 | 5 Volts | 12 Volts | 83.3mA | 19.5 x 12 x 9.8mm |
| VL-0515SSH6 | 5 Volts | 15 Volts | 66.67mA | 19.5 x 12 x 9.8mm |
| VL-093R3SSH6 | 9 Volts | 3.3 Volts | 303.03mA | 19.5 x 12 x 9.8mm |
| VL-0905SSH6 | 9 Volts | 5 Volts | 200mA | 19.5 x 12 x 9.8mm |
| VL-0909SSH6 | 9 Volts | 9 Volts | 111.11mA | 19.5 x 12 x 9.8mm |
| VL-0912SSH6 | 9 Volts | 12 Volts | 83.3mA | 19.5 x 12 x 9.8mm |
| VL-0915SSH6 | 9 Volts | 15 Volts | 66.67mA | 19.5 x 12 x 9.8mm |
| VL-123R3SSH6 | 12 Volts | 3.3 Volts | 303.03mA | 19.5 x 12 x 9.8mm |
| VL-1205SSH6 | 12 Volts | 5 Volts | 200mA | 19.5 x 12 x 9.8mm |
| VL-1209SSH6 | 12 Volts | 9 Volts | 111.11mA | 19.5 x 12 x 9.8mm |
| VL-1212SSH6 | 12 Volts | 12 Volts | 83.3mA | 19.5 x 12 x 9.8mm |
| VL-1215SSH6 | 12 Volts | 15 Volts | 66.67mA | 19.5 x 12 x 9.8mm |
| VL-153R3SSH6 | 15 Volts | 3.3 Volts | 303.03mA | 19.5 x 12 x 9.8mm |
| VL-1505SSH6 | 15 Volts | 5 Volts | 200mA | 19.5 x 12 x 9.8mm |
| VL-1509SSH6 | 15 Volts | 9 Volts | 111.11mA | 19.5 x 12 x 9.8mm |
| VL-1512SSH6 | 15 Volts | 12 Volts | 83.3mA | 19.5 x 12 x 9.8mm |
| VL-1215SSH6 | 15 Volts | 15 Volts | 66.67mA | 19.5 x 12 x 9.8mm |
| VL-243R3SSH6 | 24 Volts | 3.3 Volts | 303.03mA | 19.5 x 12 x 9.8mm |
| VL-2405SSH6 | 24 Volts | 5 Volts | 200mA | 19.5 x 12 x 9.8mm |
| VL-2409SSH6 | 24 Volts | 9 Volts | 111.11mA | 19.5 x 12 x 9.8mm |
| VL-2412SSH6 | 24 Volts | 12 Volts | 83.3mA | 19.5 x 12 x 9.8mm |
| VL-2415SSH6 | 24 Volts | 15 Volts | 66.67mA | 19.5 x 12 x 9.8mm |
Dual Output Models
| Model | Input VDC | Output 1 | Output 2 | Size S (7 Pin SIL) |
|---|---|---|---|---|
| VL-053R3SH6 | 5 Volts | +3.3 Volts / +151.2mA | -3.3 Volts / -151.2mA | 19.5 x 12 x 9.8mm |
| VL-0505SH6 | 5 Volts | +5 Volts / 100mA | -5 Volts / -100mA | 19.5 x 12 x 9.8mm |
| VL-0509SH6 | 5 Volts | +9 Volts / +55.56mA | -9 Volts / -55.56mA | 19.5 x 12 x 9.8mm |
| VL-0512SH6 | 5 Volts | +12 Volts / +41.67mA | -12 Volts / -41.67mA | 19.5 x 12 x 9.8mm |
| VL-0515SH6 | 5 Volts | +15 Volts / +33.33mA | -15 Volts / -33.33mA | 19.5 x 12 x 9.8mm |
| VL-051509SH6 | 5 Volts | +15 Volts / +33.33mA | -9 Volts / -55.55mA | 19.5 x 12 x 9.8mm |
| VL-093R3SH6 | 9 Volts | +3.3 Volts / +151.2mA | -3.3 Volts / -151.2mA | 19.5 x 12 x 9.8mm |
| VL-0905SH6 | 9 Volts | +5 Volts / 100mA | -5 Volts / -100mA | 19.5 x 12 x 9.8mm |
| VL-0909SH6 | 9 Volts | +9 Volts / +55.56mA | -9 Volts / -55.56mA | 19.5 x 12 x 9.8mm |
| VL-0912SH6 | 9 Volts | +12 Volts / +41.67mA | -12 Volts / -41.67mA | 19.5 x 12 x 9.8mm |
| VL-0915SH6 | 9 Volts | +15 Volts / +33.33mA | -15 Volts / -33.33mA | 19.5 x 12 x 9.8mm |
| VL-091509SH6 | 9 Volts | +15 Volts / +33.33mA | -9 Volts / -55.55mA | 19.5 x 12 x 9.8mm |
| VL-123R3SH6 | 12 Volts | +3.3 Volts / +151.2mA | -3.3 Volts / -151.2mA | 19.5 x 12 x 9.8mm |
| VL-1205SH6 | 12 Volts | +5 Volts / 100mA | -5 Volts / -100mA | 19.5 x 12 x 9.8mm |
| VL-1209SH6 | 12 Volts | +9 Volts / +55.56mA | -9 Volts / -55.56mA | 19.5 x 12 x 9.8mm |
| VL-1212SH6 | 12 Volts | +12 Volts / +41.67mA | -12 Volts / -41.67mA | 19.5 x 12 x 9.8mm |
| VL-1215SH6 | 12 Volts | +15 Volts / +33.33mA | -15 Volts / -33.33mA | 19.5 x 12 x 9.8mm |
| VL-121509SH6 | 12 Volts | +15 Volts / +33.33mA | -9 Volts / -55.55mA | 19.5 x 12 x 9.8mm |
| VL-153R3SH6 | 15 Volts | +3.3 Volts / +151.2mA | -3.3 Volts / -151.2mA | 19.5 x 12 x 9.8mm |
| VL-1505SH6 | 15 Volts | +5 Volts / 100mA | -5 Volts / -100mA | 19.5 x 12 x 9.8mm |
| VL-1509SH6 | 15 Volts | +9 Volts / +55.56mA | -9 Volts / -55.56mA | 19.5 x 12 x 9.8mm |
| VL-1512SH6 | 15 Volts | +12 Volts / +41.67mA | -12 Volts / -41.67mA | 19.5 x 12 x 9.8mm |
| VL-1515SH6 | 15 Volts | +15 Volts / +33.33mA | -15 Volts / -33.33mA | 19.5 x 12 x 9.8mm |
| VL-151509SH6 | 15 Volts | +15 Volts / +33.33mA | -9 Volts / -55.55mA | 19.5 x 12 x 9.8mm |
| VL-243R3SH6 | 24 Volts | +3.3 Volts / +151.2mA | -3.3 Volts / -151.2mA | 19.5 x 12 x 9.8mm |
| VL-2405SH6 | 24 Volts | +5 Volts / 100mA | -5 Volts / -100mA | 19.5 x 12 x 9.8mm |
| VL-2409SH6 | 24 Volts | +9 Volts / +55.56mA | -9 Volts / -55.56mA | 19.5 x 12 x 9.8mm |
| VL-2412SH6 | 24 Volts | +12 Volts / +41.67mA | -12 Volts / -41.67mA | 19.5 x 12 x 9.8mm |
| VL-2415SH6 | 24 Volts | +15 Volts / +33.33mA | -15 Volts / -33.33mA | 19.5 x 12 x 9.8mm |
| VL-241509SH6 | 24 Volts | +15 Volts / +33.33mA | -9 Volts / -55.55mA | 19.5 x 12 x 9.8mm |
Notes
| Single Output ass Suffix DS for 14 Pin DIL Package |
| Dual output add Suffix 'D' for 14 Pin DIL Package |
| Add Suffix 'H' for 3000 VDC Isolation |
| Add Suffix H2 for 2000 VDC Isolation |
| Add Suffix 'H4' for 4000 VDC Isolation |
| `Add Suffix 'H5' for 5200 VDC Isolation |
| Add Suffix 'H6' for 6000 VDC Isolation |
Related Products
https://www.allpsu.co.uk/wp-content/uploads/2021/12/13DS1C.jpg
13DS1C
13DS1C – 1 Watt
Models & Information
https://www.allpsu.co.uk/wp-content/uploads/2021/12/m4-1w.jpg
m4-1w-dcdc-converter
M4-1W Series
Models & Information
https://www.allpsu.co.uk/wp-content/uploads/2021/12/V1-0.5.jpg
v1-0.5w-dcdc-converter
V1-0.5 Watt
Models & Information
https://www.allpsu.co.uk/wp-content/uploads/2021/12/VA-1.5w.jpg
VA-1.5w-dcdc-converter
VA-1.5 Watt
Models & Information

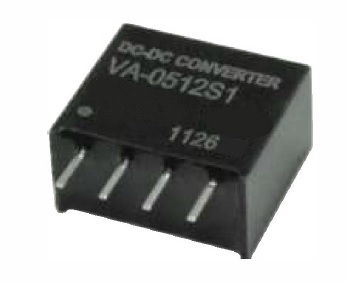

https://www.allpsu.co.uk/wp-content/uploads/2021/12/VA-1w.jpg
