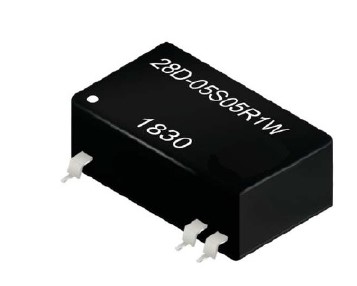

28d-1w-dcdc-converter 28d-1w-dcdc-converter

28D-1 Watt

28D-1W Series, 1 Watt Surface Mount DC-DC Converter

16 Pin SMD Package

1500 VDC Isolation

2:1 Input Range

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • 1W Isolated Output
  • 16 Pin SMD Package
  • Up to 1500 VDC Isolation
  • Regulated Output Types
  • Efficiency up to 83 %
  • Internal SMD Construction
  • No External Component Required
  • Operating Temperature:-40℃ TO +85℃

Models and Ratings

Model Input VDC Output VDC Output Current Size (16 Pin SMD)
28D-05S03R1W 4.5~9 Volts 3.3 Volts 303mA 24.1 x 14.35 x 10.25mm
28D-05S05R1W 4.5~9 Volts 5 Volts 200mA 24.1 x 14.35 x 10.25mm
28D-05S12R1W 4.5~9 Volts 12 Volts 84mA 24.1 x 14.35 x 10.25mm
28D-05S15R1W 4.5~9 Volts 15 Volts 67mA 24.1 x 14.35 x 10.25mm
28D-12S03R1W 9~18 Volts 3.3 Volts 303mA 24.1 x 14.35 x 10.25mm
28D-12S05R1W 9~18 Volts 5 Volts 200mA 24.1 x 14.35 x 10.25mm
28D-12S12R1W 9~18 Volts 12 Volts 84mA 24.1 x 14.35 x 10.25mm
28D-12S15R1W 9~18 Volts 15 Volts 67mA 24.1 x 14.35 x 10.25mm
28D-24S03R1W 18~36 Volts 3.3 Volts 303mA 24.1 x 14.35 x 10.25mm
28D-24S05R1W 18~36 Volts 5 Volts 200mA 24.1 x 14.35 x 10.25mm
28D-24S12R1W 18~36 Volts 12 Volts 84mA 24.1 x 14.35 x 10.25mm
28D-24S15R1W 18~36 Volts 15 Volts 67mA 24.1 x 14.35 x 10.25mm
28D-48S03R1W 36~75 Volts 3.3 Volts 303mA 24.1 x 14.35 x 10.25mm
28D-48S05R1W 36~75 Volts 5 Volts 200mA 24.1 x 14.35 x 10.25mm
28D-48S12R1W 36~75 Volts 12 Volts 84mA 24.1 x 14.35 x 10.25mm
28D-48S15R1W 36~75 Volts 15 Volts 67mA 24.1 x 14.35 x 10.25mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (16 Pin SMD)
28D-05D05R1W 4.5~9 Volts +5 Volts / +100mA -5 Volts / -100mA 24.1 x 14.35 x 10.25mm
28D-05D05R1W 4.5~9 Volts +12 Volts / +42mA -12 Volts / -42mA 24.1 x 14.35 x 10.25mm
28D-05D05R1W 4.5~9 Volts +15 Volts / +34mA -15 Volts / -34mA 24.1 x 14.35 x 10.25mm
28D-12D05R1W 9~18 Volts +5 Volts / +100mA -5 Volts / -100mA 24.1 x 14.35 x 10.25mm
28D-12D12R1W 9~18 Volts +12 Volts / +42mA -12 Volts / -42mA 24.1 x 14.35 x 10.25mm
28D-12D15R1W 9~18 Volts +15 Volts / +34mA -15 Volts / -34mA 24.1 x 14.35 x 10.25mm
28D-24D05R1W 18~36 Volts +5 Volts / +100mA -5 Volts / -100mA 24.1 x 14.35 x 10.25mm
28D-24D12R1W 18~36 Volts +12 Volts / +42mA -12 Volts / -42mA 24.1 x 14.35 x 10.25mm
28D-24D15R1W 18~36 Volts +15 Volts / +34mA -15 Volts / -34mA 24.1 x 14.35 x 10.25mm
28D-48D05R1W 36~75 Volts +5 Volts / +100mA -5 Volts / -100mA 24.1 x 14.35 x 10.25mm
28D-48D12R1W 36~75 Volts +12 Volts / +42mA -12 Volts / -42mA 24.1 x 14.35 x 10.25mm
28D-48D15R1W 36~75 Volts +15 Volts / +34mA -15 Volts / -34mA 24.1 x 14.35 x 10.25mm
