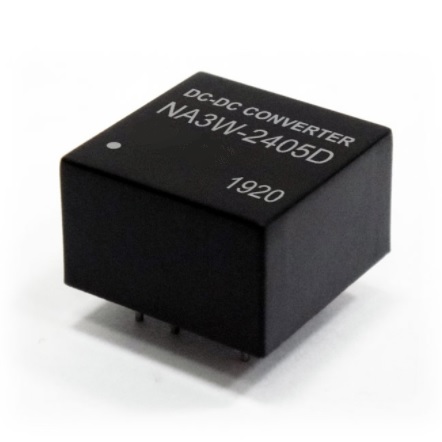

na3w-dcdc-converter na3w-dcdc-converter

NA3W Series

NA3W Series, 3 Watt Through Hole DC-DC Converter

8 Pin DIL  Package

1600 VDC Isolation

4:1 Inputs

Regulated Single and Dual Output

Request a quote Download Datasheet

Features

  • Highest Power Density In 8 Pin DIL Package
  • 1600 VDC Isolation
  • Wide 4:1 Input Range
  • Full SMD Technology
  • Continuous Short Circuit Protection
  • Efficiency up to 84 %
  • Remote on/off Control
  • Under Voltage Lock-Out Circuit
  • -40°C ~ +80°C Operating Temperature Range

Models and Ratings

Model Input VDC Output VDC Output Current Size (8 Pin DIL)
NA3W-123R3S 4.5~18 Volts 3.3 Volts 700mA 14 x 14 x 8.1mm
NA3W-1205S 4.5~18 Volts 5 Volts 600mA 14 x 14 x 8.1mm
NA3W-1212S 4.5~18 Volts 12 Volts 250mA 14 x 14 x 8.1mm
NA3W-1215S 4.5~18 Volts 15 Volts 200mA 14 x 14 x 8.1mm
NA3W-243R3S 9~36 Volts 3.3 Volts 700mA 14 x 14 x 8.1mm
NA3W-2405S 9~36 Volts 5 Volts 600mA 14 x 14 x 8.1mm
NA3W-2412S 9~36 Volts 12 Volts 250mA 14 x 14 x 8.1mm
NA3W-2415S 9~36 Volts 15 Volts 200mA 14 x 14 x 8.1mm
NA3W-483R3S 18~75 Volts 3.3 Volts 700mA 14 x 14 x 8.1mm
NA3W-4805S 18~75 Volts 5 Volts 600mA 14 x 14 x 8.1mm
NA3W-4812S 18~75 Volts 12 Volts 250mA 14 x 14 x 8.1mm
NA3W-4815S 18~75 Volts 15 Volts 200mA 14 x 14 x 8.1mm

Dual Output Models

Model Input VDC Output 1 Output 2 Size (8 Pin DIL)
NA3W-1205D 4.5~18 Volts +5 Volts / +300mA -5 Volts / -300mA 14 x 14 x 8.1mm
NA3W-1212D 4.5~18 Volts +12 Volts / +125mA -12 Volts / -125mA 14 x 14 x 8.1mm
NA3W-1215D 4.5~18 Volts +15 Volts / +100mA -15 Volts / -100mA 14 x 14 x 8.1mm
NA3W-2405D 9~36 Volts +5 Volts / +300mA -5 Volts / -300mA 14 x 14 x 8.1mm
NA3W-2412D 9~36 Volts +12 Volts / +125mA -12 Volts / -125mA 14 x 14 x 8.1mm
NA3W-2415D 9~36 Volts +15 Volts / +100mA -15 Volts / -100mA 14 x 14 x 8.1mm
NA3W-4805D 18~75 Volts +5 Volts / +300mA -5 Volts / -300mA 14 x 14 x 8.1mm
NA3W-4812D 18~75 Volts +12 Volts / +125mA -12 Volts / -125mA 14 x 14 x 8.1mm
NA3W-4815D 18~75 Volts +15 Volts / +100mA -15 Volts / -100mA 14 x 14 x 8.1mm

Related Products

vb-6w-dcdc-converter vb-6w-dcdc-converter

VB-6 Watt

Models & Information

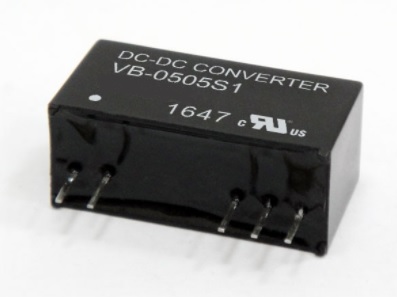

vb-1w-dcdc-converter vb-1w-dcdc-converter
